4.3 Double ML for Difference-in-Differences: Panel Data

Double machine learning for difference-in-differences keeps the identification logic of DiD and lets the nuisance functions be flexible. Classic two-way fixed effects assume

\[Y_{it} = \alpha_i + \gamma_t + \theta (D_{it} \times \text{Post}_t) + \varepsilon_{it}.\]

With a first-differenced outcome the partially linear version is

\[\Delta Y_{it} = \theta D_{it} + g(X_{it}) + \zeta_{it},\]

where \(g\) is cross-fit rather than forced to be linear.

Overview

Step Component Purpose
1 Nuisance estimation Propensity \(\hat{e}(X) = P(D=1\mid X)\) and control regression \(\hat{\ell}(X) = E[\Delta Y \mid D=0, X]\)
2 Cross-fitting Train on \(K-1\) folds, predict on the held-out fold
3 Orthogonal score \(\psi_i = \big(\frac{D_i}{\bar{p}} - \frac{(1-D_i)\hat{e}(X_i)}{\bar{p}(1-\hat{e}(X_i))}\big)(\Delta Y_i - \hat{\ell}(X_i))\)
4 Final estimation \(\hat{\theta} = n^{-1}\sum_i \psi_i\), with an influence-function standard error
Challenge Linear DiD DML-DiD
Many controls OLS is noisy or infeasible when \(p\) is large ML fits the nuisances
Nonlinear confounding A linear \(g(X)\) is misspecified Forests and boosting approximate \(g\)
Inference Valid under correct linear specification Valid if the nuisances converge and the score is orthogonal

The group-time estimand \(\mathrm{ATT}(g,t)\) is the effect at calendar time \(t\) for the cohort first treated at \(g\), using not-yet-treated and never-treated units as controls (Callaway and Sant’Anna, 2021). The score above is the doubly robust DiD score of Sant’Anna and Zhao (2020) applied to \(\Delta Y\).

Implementation in Python

Each group-time cell is a 2×2 difference in differences on the first-differenced outcome. Three nuisance pairs are compared:

Wrapper Outcome nuisance Propensity
linear ridge logistic regression
random forest random forest random forest
gradient boosting gradient boosting gradient boosting

DifferenceInDifferences from PyCausalML is the unadjusted two-period benchmark on one cohort. Aggregation is a simple average of the group-time estimates. SHAP is applied to a LinearDML fit on a single first-differenced slice, which describes CATE heterogeneity inside that slice.

Set Up

Code
import subprocess
import sys
from pathlib import Path

def _repo_root() -> Path:
    here = Path.cwd().resolve()
    for cand in [here, *here.parents]:
        if (cand / "pyproject.toml").is_file() and (cand / "src" / "pycausalml").is_dir():
            return cand
    raise FileNotFoundError(
        "PyCausalML repository was not found. Run this notebook from the repository."
    )

root = _repo_root()
data_dir = root / "Data"
if not data_dir.is_dir():
    raise FileNotFoundError(
        "The Data directory was not found. It should sit next to pyproject.toml."
    )

try:
    import pycausalml  # noqa: F401
    print("PyCausalML ready.")
except ImportError:
    subprocess.check_call(
        [sys.executable, "-m", "pip", "install", "-q", "-e", f"{root}[plot]"],
    )
    print("PyCausalML installed.")
print("Data directory:", data_dir)
PyCausalML ready.
Data directory: /home/zia207/Github/PyCausalML/Data
Code
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from scipy import stats
from sklearn.ensemble import (
    GradientBoostingClassifier,
    GradientBoostingRegressor,
    RandomForestClassifier,
    RandomForestRegressor,
)
from sklearn.linear_model import Lasso, LassoCV, LogisticRegression, Ridge
from sklearn.metrics import (
    accuracy_score,
    average_precision_score,
    brier_score_loss,
    mean_squared_error,
    precision_recall_curve,
    roc_auc_score,
    roc_curve,
)
from sklearn.model_selection import KFold
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import PolynomialFeatures, StandardScaler

from pycausalml import (
    CausalForestDML,
    InteractiveRegressionDML,
    KernelDML,
    LinearDML,
    NonParamDML,
    PartiallyLinearDML,
    SparseLinearDML,
    explain_cate,
)
from pycausalml.interpretation import plot_cate_hist

plt.rcParams["figure.dpi"] = 110
print("Imported PyCausalML")

from pycausalml import DifferenceInDifferences
Imported PyCausalML
Code
def _classifier(kind, seed):
    if kind == "logit":
        return LogisticRegression(max_iter=400)
    if kind == "rf":
        return RandomForestClassifier(
            n_estimators=40, max_depth=4, min_samples_leaf=5, random_state=seed, n_jobs=1,
        )
    return GradientBoostingClassifier(
        n_estimators=30, max_depth=2, learning_rate=0.08, random_state=seed,
    )


def _regressor(kind, seed):
    if kind == "ridge":
        return Ridge(alpha=1.0)
    if kind == "rf":
        return RandomForestRegressor(
            n_estimators=40, max_depth=4, min_samples_leaf=5, random_state=seed, n_jobs=1,
        )
    return GradientBoostingRegressor(
        n_estimators=30, max_depth=2, learning_rate=0.08, random_state=seed,
    )


def dr_att(X, d, dy, learner="linear", seed=0, n_splits=2):
    """Doubly robust ATT for a first-differenced 2×2 comparison."""
    d = np.asarray(d, dtype=int)
    dy = np.asarray(dy, dtype=float)
    X = np.asarray(X, dtype=float)
    if X.ndim == 1:
        X = X.reshape(-1, 1)
    n = len(d)
    e_hat = np.full(n, float(d.mean()))
    mu0 = np.full(n, float(dy[d == 0].mean()) if np.any(d == 0) else 0.0)
    kind_c = {"linear": "logit", "rf": "rf", "gbr": "gbr"}[learner]
    kind_r = {"linear": "ridge", "rf": "rf", "gbr": "gbr"}[learner]
    splitter = KFold(n_splits=n_splits, shuffle=True, random_state=seed)
    for fold, (tr, te) in enumerate(splitter.split(X)):
        if len(np.unique(d[tr])) < 2 or np.sum(d[tr] == 0) < 8:
            continue
        clf = _classifier(kind_c, seed + fold)
        clf.fit(X[tr], d[tr])
        e_hat[te] = clf.predict_proba(X[te])[:, 1]
        reg = _regressor(kind_r, seed + fold)
        ctrl = tr[d[tr] == 0]
        reg.fit(X[ctrl], dy[ctrl])
        mu0[te] = reg.predict(X[te])
    e_hat = np.clip(e_hat, 0.05, 0.95)
    p_hat = float(np.mean(d))
    psi = (d / p_hat - (1 - d) * e_hat / (p_hat * (1 - e_hat))) * (dy - mu0)
    theta = float(np.mean(psi))
    se = float(np.std(psi, ddof=1) / np.sqrt(n))
    rmse = float(np.sqrt(np.mean((dy[d == 0] - mu0[d == 0]) ** 2)))
    acc = float(np.mean((e_hat >= 0.5).astype(int) == d))
    return {"att": theta, "se": se, "rmse_mu0": rmse, "propensity_acc": acc}


def simulate_panel(n_units=700, seed=0):
    rng = np.random.default_rng(seed)
    cohort = rng.choice([0, 2, 3, 4], size=n_units, p=[0.45, 0.2, 0.2, 0.15])
    x = rng.normal(size=(n_units, 2))
    rows = []
    for period in (1, 2, 3, 4):
        treated_now = ((cohort > 0) & (period >= cohort)).astype(float)
        exposure = np.where(treated_now == 1, period - cohort, 0)
        outcome = (
            0.4 * x[:, 0]
            + 0.15 * period
            + treated_now * (1.0 + 0.4 * exposure)
            + 0.25 * x[:, 1] * treated_now
            + rng.normal(scale=0.45, size=n_units)
        )
        rows.append(pd.DataFrame({
            "id": np.arange(n_units),
            "period": period,
            "G": cohort,
            "Y": outcome,
            "treat": treated_now.astype(int),
            "x1": x[:, 0],
            "x2": x[:, 1],
        }))
    return pd.concat(rows, ignore_index=True)


print("DiD helpers ready")
DiD helpers ready

Part A: Simulated Data

Four periods and staggered adoption. The effect equals \(1 + 0.4 \times \text{exposure}\) plus a small \(x_2\) interaction, so the cohort-time target, averaging over \(x_2\), is about \(1 + 0.4(t-g)\). Units are stored in long format.

Code
panel = simulate_panel()
print(panel.groupby(["G", "period"]).size().unstack(fill_value=0))
panel.head()
period    1    2    3    4
G
0       295  295  295  295
2       142  142  142  142
3       152  152  152  152
4       111  111  111  111
id period G Y treat x1 x2
0 0 1 2 0.368434 0 1.304508 0.151275
1 1 1 0 0.786341 0 0.850301 -0.605664
2 2 1 0 1.012178 0 1.376725 0.345278
3 3 1 0 0.753181 0 0.481246 0.548729
4 4 1 3 0.753199 0 -0.797009 -1.865721
Variable Role
G First period treated (0 = never)
period Time
Y Outcome
treat 1 if the unit is treated in this period
x1, x2 Covariates
id Unit identifier

Benchmark: two-period DiD

DifferenceInDifferences fits \(Y = a + b\,\text{treated} + c\,\text{post} + \tau\,\text{treated}\times\text{post}\) on the never-treated units and the cohort first treated in period 2, using periods 1 and 2. The target for that cell is about 1.

Code
sub = panel[panel["G"].isin([0, 2]) & panel["period"].isin([1, 2])].copy()
did = DifferenceInDifferences(n_boot=80, random_state=0)
did.fit(
    sub["Y"].to_numpy(),
    (sub["G"] == 2).astype(float).to_numpy(),
    (sub["period"] == 2).astype(float).to_numpy(),
)
print(did.summary())
{'estimate': 1.0420090240872752, 'ci_lower': 0.8551152983045504, 'ci_upper': 1.210054659144033, 'posterior_mean': 1.0545496878221035}

Group-time ATT with three nuisance learners

For each cohort \(g \in \{2,3,4\}\) and time \(t \ge g\), the pre-period is \(g-1\) and the control group is never-treated units. The outcome in the score is \(\Delta Y = Y_t - Y_{g-1}\).

Code
def group_time_table(frame, id_col, time_col, cohort_col, y_col, x_cols, learner):
    cohorts = sorted(g for g in frame[cohort_col].unique() if g > 0)
    rows = []
    for g in cohorts:
        pre = int(g) - 1
        for t in sorted(frame[time_col].unique()):
            if t < g or pre not in set(frame[time_col]):
                continue
            post = frame[frame[time_col] == t][[id_col, y_col, cohort_col, *x_cols]]
            base = frame[frame[time_col] == pre][[id_col, y_col]].rename(columns={y_col: "y_pre"})
            merged = post.merge(base, on=id_col)
            treated = merged[cohort_col] == g
            control = merged[cohort_col] == 0
            sample = merged[treated | control]
            if sample[cohort_col].eq(g).sum() < 15 or sample[cohort_col].eq(0).sum() < 15:
                continue
            result = dr_att(
                sample[x_cols].to_numpy(),
                (sample[cohort_col] == g).astype(int).to_numpy(),
                (sample[y_col] - sample["y_pre"]).to_numpy(),
                learner=learner,
                seed=int(g) * 10 + int(t),
            )
            result.update({"G": int(g), "time": int(t), "learner": learner, "target": 1.0 + 0.4 * (int(t) - int(g))})
            rows.append(result)
    return pd.DataFrame(rows)


tables = [group_time_table(panel, "id", "period", "G", "Y", ["x1", "x2"], learner) for learner in ("linear", "rf", "gbr")]
att_a = pd.concat(tables, ignore_index=True)
att_a.round(3)
att se rmse_mu0 propensity_acc G time learner target
0 1.072 0.104 0.686 0.675 2 2 linear 1.0
1 1.338 0.117 0.592 0.675 2 3 linear 1.4
2 1.779 0.142 0.637 0.675 2 4 linear 1.8
3 0.979 0.096 0.672 0.660 3 3 linear 1.0
4 1.345 0.111 0.631 0.653 3 4 linear 1.4
5 0.989 0.108 0.647 0.727 4 4 linear 1.0
6 1.183 0.121 0.708 0.618 2 2 rf 1.0
7 1.327 0.120 0.619 0.670 2 3 rf 1.4
8 1.833 0.149 0.643 0.648 2 4 rf 1.8
9 0.987 0.098 0.677 0.653 3 3 rf 1.0
10 1.397 0.118 0.656 0.653 3 4 rf 1.4
11 1.143 0.124 0.662 0.714 4 4 rf 1.0
12 1.147 0.118 0.703 0.632 2 2 gbr 1.0
13 1.300 0.120 0.610 0.677 2 3 gbr 1.4
14 1.799 0.147 0.637 0.659 2 4 gbr 1.8
15 1.014 0.100 0.684 0.631 3 3 gbr 1.0
16 1.377 0.116 0.644 0.638 3 4 gbr 1.4
17 1.107 0.120 0.653 0.717 4 4 gbr 1.0

On this near-linear design the linear nuisance usually tracks the target closely. Random forests and gradient boosting add flexibility; their standard errors are often a little larger.

Code

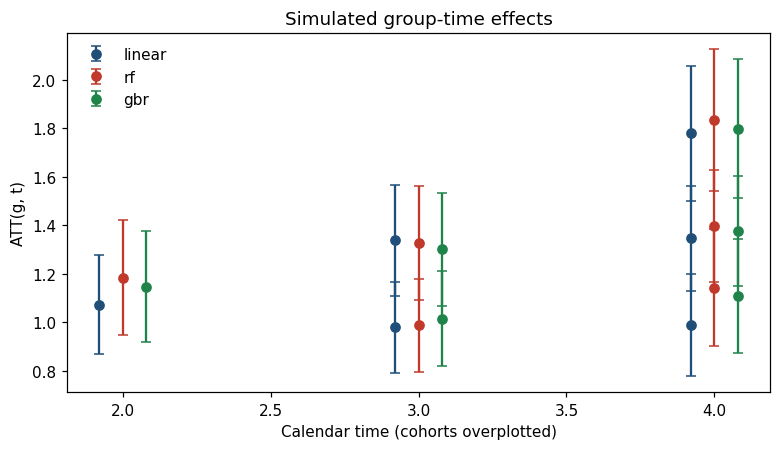

fig, ax = plt.subplots(figsize=(7.2, 4.2))
for learner, color in (("linear", "#1F4E79"), ("rf", "#C0392B"), ("gbr", "#1E8449")):
    part = att_a[att_a["learner"] == learner]
    ax.errorbar(
        part["time"] + {"linear": -0.08, "rf": 0.0, "gbr": 0.08}[learner],
        part["att"],
        yerr=1.96 * part["se"],
        fmt="o", label=learner, color=color, capsize=3,
    )
ax.set_xlabel("Calendar time (cohorts overplotted)")
ax.set_ylabel("ATT(g, t)")
ax.set_title("Simulated group-time effects")
ax.legend(frameon=False)
fig.tight_layout()

Aggregate effects

The simple aggregate is the unweighted mean of \(\widehat{\mathrm{ATT}}(g,t)\) across cells with \(t \ge g\). Cell-by-cell RMSE is the root mean squared difference between two learners.

Code
agg = att_a.groupby("learner")["att"].mean().rename("simple_aggregate")
wide = att_a.pivot_table(index=["G", "time"], columns="learner", values="att")
rmse_rows = []
for a, b in (("linear", "rf"), ("linear", "gbr"), ("rf", "gbr")):
    rmse_rows.append({"comparison": f"{a} vs {b}", "RMSE": float(np.sqrt(np.mean((wide[a] - wide[b]) ** 2)))})
print(agg.round(3))
pd.DataFrame(rmse_rows).round(4)
learner
gbr       1.291
linear    1.250
rf        1.312
Name: simple_aggregate, dtype: float64
comparison RMSE
0 linear vs rf 0.0834
1 linear vs gbr 0.0626
2 rf vs gbr 0.0305

Nuisance diagnostics (Part A)

rmse_mu0 is the error of the control outcome regression on control units. propensity_acc is the accuracy of a 0.5 threshold on the cross-fitted propensity. On a nearly linear design the linear nuisance often has the smallest outcome RMSE. Flexible learners can still recover a similar ATT because the score is orthogonal.

Code
att_a.groupby("learner")[["rmse_mu0", "propensity_acc"]].mean().round(4)
rmse_mu0 propensity_acc
learner
gbr 0.6550 0.6589
linear 0.6442 0.6775
rf 0.6609 0.6595

Part B: Minimum Wages and Teen Employment

Data/mpdta.csv is the county panel used by Callaway and Sant’Anna (2003–2007): log teen employment lemp, log population lpop, and the first year the county’s minimum wage rose above the federal level (first.treat, with 0 for never treated).

Load and inspect

Code
mpdta = pd.read_csv(data_dir / "mpdta.csv")
print(mpdta.shape)
print(mpdta["first.treat"].value_counts())
mpdta.head()
(2500, 6)
first.treat
0       1545
2007     655
2006     200
2004     100
Name: count, dtype: int64
year countyreal lpop lemp first.treat treat
0 2003 8001 5.896761 8.461469 2007 1
1 2004 8001 5.896761 8.336870 2007 1
2 2005 8001 5.896761 8.340217 2007 1
3 2006 8001 5.896761 8.378161 2007 1
4 2007 8001 5.896761 8.487352 2007 1

Benchmark and DML wrappers on mpdta

Code
# Cohort 2004 versus never-treated, years 2003 and 2004, classic two-period DiD.
slice_b = mpdta[mpdta["first.treat"].isin([0, 2004]) & mpdta["year"].isin([2003, 2004])].copy()
did_b = DifferenceInDifferences(n_boot=80, random_state=1)
did_b.fit(
    slice_b["lemp"].to_numpy(),
    (slice_b["first.treat"] == 2004).astype(float).to_numpy(),
    (slice_b["year"] == 2004).astype(float).to_numpy(),
)
print("Two-period DiD, cohort 2004:", did_b.summary())

att_b = pd.concat([
    group_time_table(mpdta, "countyreal", "year", "first.treat", "lemp", ["lpop"], learner)
    for learner in ("linear", "rf", "gbr")
], ignore_index=True)
att_b.round(4)
Two-period DiD, cohort 2004: {'estimate': -0.010503246220964347, 'ci_lower': -0.9830091531110187, 'ci_upper': 0.7221426332437961, 'posterior_mean': 0.02076770385279324}
att se rmse_mu0 propensity_acc G time learner target
0 -0.0178 0.0230 0.1710 0.9392 2004 2004 linear 1.0
1 -0.0711 0.0336 0.1831 0.9392 2004 2005 linear 1.4
2 -0.1516 0.0491 0.2567 0.9392 2004 2006 linear 1.8
3 -0.0995 0.0417 0.2567 0.9392 2004 2007 linear 2.2
4 0.0101 0.0221 0.2023 0.8854 2006 2006 linear 1.0
5 -0.0467 0.0206 0.2066 0.8854 2006 2007 linear 1.4
6 -0.0290 0.0170 0.1624 0.6886 2007 2007 linear 1.0
7 0.0115 0.0244 0.1734 0.9392 2004 2004 rf 1.0
8 -0.0927 0.0358 0.1951 0.9392 2004 2005 rf 1.4
9 -0.2008 0.0653 0.2647 0.9392 2004 2006 rf 1.8
10 -0.0887 0.0518 0.2685 0.9392 2004 2007 rf 2.2
11 0.0044 0.0210 0.2072 0.8854 2006 2006 rf 1.0
12 -0.0686 0.0221 0.2129 0.8854 2006 2007 rf 1.4
13 -0.0303 0.0178 0.1680 0.6705 2007 2007 rf 1.0
14 0.0041 0.0236 0.1763 0.9362 2004 2004 gbr 1.0
15 -0.0755 0.0461 0.1957 0.9210 2004 2005 gbr 1.4
16 -0.2427 0.0757 0.2713 0.9210 2004 2006 gbr 1.8
17 -0.0496 0.0658 0.2648 0.9119 2004 2007 gbr 2.2
18 0.0328 0.0354 0.2272 0.8768 2006 2006 gbr 1.0
19 -0.0588 0.0211 0.2114 0.8768 2006 2007 gbr 1.4
20 -0.0138 0.0215 0.1712 0.6795 2007 2007 gbr 1.0

Compare wrapper performance (Part B)

Code
print(att_b.groupby("learner")["att"].agg(["mean", "std"]).round(4))
wide_b = att_b.pivot_table(index=["G", "time"], columns="learner", values="att")
pd.DataFrame([
    {"comparison": f"{a} vs {b}", "RMSE": float(np.sqrt(np.mean((wide_b[a] - wide_b[b]) ** 2)))}
    for a, b in (("linear", "rf"), ("linear", "gbr"), ("rf", "gbr"))
]).round(4)
           mean     std
learner
gbr     -0.0576  0.0899
linear  -0.0580  0.0546
rf      -0.0664  0.0726
comparison RMSE
0 linear vs rf 0.0250
1 linear vs gbr 0.0417
2 rf vs gbr 0.0262

Nuisance diagnostics and the aggregate effect

Code
print(att_b.groupby("learner")[["rmse_mu0", "propensity_acc"]].mean().round(4))
print("Simple aggregate ATT by learner:")
print(att_b.groupby("learner")["att"].mean().round(4))
         rmse_mu0  propensity_acc
learner
gbr        0.2168          0.8747
linear     0.2055          0.8880
rf         0.2128          0.8854
Simple aggregate ATT by learner:
learner
gbr      -0.0576
linear   -0.0580
rf       -0.0664
Name: att, dtype: float64
Code

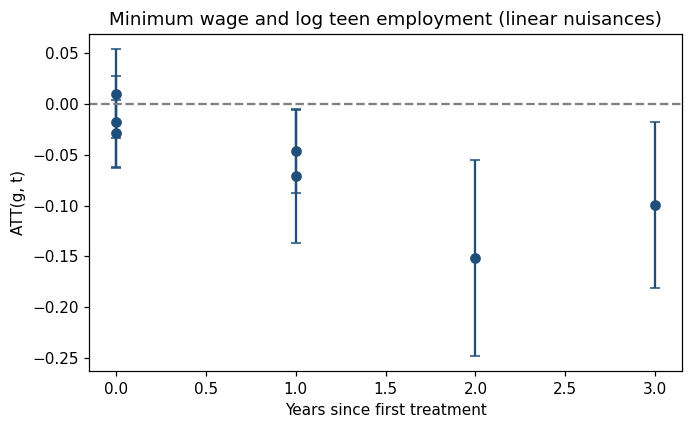

ref = att_b[att_b["learner"] == "linear"].copy()
ref["rel"] = ref["time"] - ref["G"]
fig, ax = plt.subplots(figsize=(6.4, 4.0))
ax.errorbar(ref["rel"], ref["att"], yerr=1.96 * ref["se"], fmt="o", color="#1F4E79", capsize=3)
ax.axhline(0, color="grey", ls="--")
ax.set_xlabel("Years since first treatment")
ax.set_ylabel("ATT(g, t)")
ax.set_title("Minimum wage and log teen employment (linear nuisances)")
fig.tight_layout()

The aggregate is one number for the average post-treatment cell, with lpop as the covariate. Forests and boosting answer the same cells with different nuisances; small differences are expected.

SHAP on one DiD slice

Group-time fits do not have a single predict surface. To show SHAP we take the 2004 cohort against never-treated counties, build \(\Delta Y = \text{lemp}_{2004} - \text{lemp}_{2003}\), and fit LinearDML on lpop plus a second copy of the covariate so the CATE can vary. These values describe that slice, not the group-time table.

Code
post = mpdta[mpdta["year"] == 2004][["countyreal", "lemp", "lpop", "first.treat"]]
pre = mpdta[mpdta["year"] == 2003][["countyreal", "lemp"]].rename(columns={"lemp": "lemp0"})
slice_s = post.merge(pre, on="countyreal")
slice_s = slice_s[slice_s["first.treat"].isin([0, 2004])].copy()
dy = (slice_s["lemp"] - slice_s["lemp0"]).to_numpy()
treat = (slice_s["first.treat"] == 2004).astype(int).to_numpy()
# Two columns so a linear CATE is not forced to a constant.
xs = np.column_stack([
    slice_s["lpop"].to_numpy(),
    (slice_s["lpop"] - slice_s["lpop"].mean()) ** 2,
])
ldml = LinearDML(discrete_treatment=True, n_splits=2, model_y="ridge", random_state=5)
ldml.fit(xs, treat, dy, feature_names=["lpop", "lpop_sq"])
explanation = explain_cate(ldml, xs, feature_names=["lpop", "lpop_sq"], max_samples=40, n_permutations=8, random_state=5)

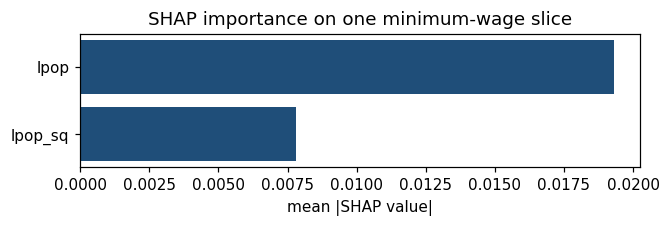

explanation.plot_importance(title="SHAP importance on one minimum-wage slice")

Code

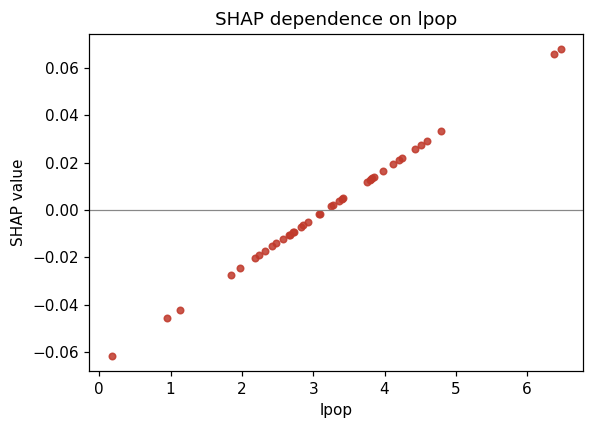

explanation.plot_dependence("lpop", title="SHAP dependence on lpop")

Code

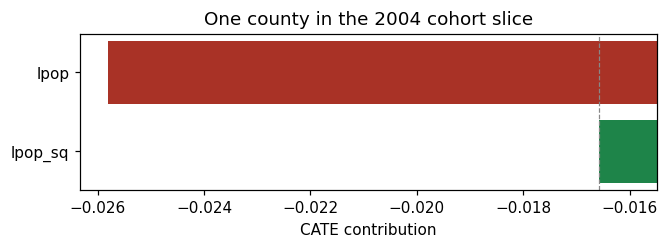

explanation.plot_waterfall(row=0, title="One county in the 2004 cohort slice")

Code

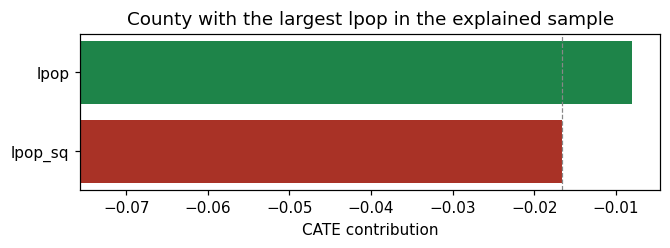

row = int(np.argmax(explanation.data[:, 0]))
explanation.plot_waterfall(row=row, title="County with the largest lpop in the explained sample")

Summary

Component What we did
Data Long panels with a cohort, a clock, an outcome, and covariates
Benchmark DifferenceInDifferences on one 2×2 block
DML-DiD Doubly robust score with linear, forest, and boosting nuisances
Diagnostics Simple aggregates, pairwise ATT RMSE, nuisance RMSE and propensity accuracy
Real data Data/mpdta.csv, minimum wages and log teen employment
SHAP LinearDML on one first-differenced slice

The orthogonal score lets the nuisances be nonlinear without handing the ATT a first-order bias from those fits. The linear nuisance is a good default; forests and boosting matter when the propensity or the outcome surface is clearly nonlinear.

Resources

  • Callaway, B., & Sant’Anna, P. H. C. (2021). Difference-in-differences with multiple time periods. Journal of Econometrics, 225(2), 200–230.
  • Sant’Anna, P. H. C., & Zhao, J. (2020). Doubly robust difference-in-differences estimators. Journal of Econometrics, 219(1), 101–122.
  • Chernozhukov, V., et al. (2018). Double/debiased machine learning for treatment and structural parameters. The Econometrics Journal, 21(1), C1–C68.
Back to top
